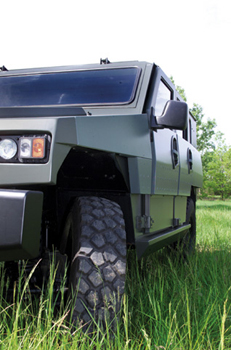

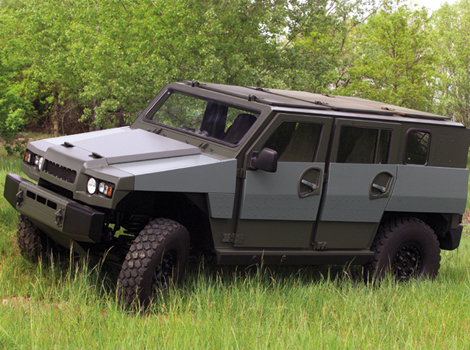

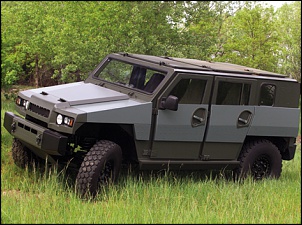

Pessoal navegando na internet achei no site da PANHARD (que pertence a Auverland (Mãe jo JPX
))essa versão Francesa do Hummer.O site é bem legal!!!!
www.panhard.fr/francais/index.htm
Ficha Técnica:
TYPE A4 FAST, Wheelbase : 3 000 mm
CHASSIS Tubular chassis with 120 x 60mm and 140 x 60mm rectangular tube
BODY 10/10mm steel metal body - AP mine protected floor (DM 31 type)
DIMENSIONS
Overall length 4 456 mm
Overall width 1 970 mm
Overall height 1 950 mm
Wheelbase 3 000 mm
Front and rear track 1 640 mm
Ground clearance 312 mm
WEIGHT
Tare weight 2 700 kg
Gross Vehicle Weight 4 000 kg
Payload 1 300 kg
Weight on front axle 2 000 kg
Weight on rear axle 2 500 kg
ENGINE Brand / Type
Engine architecture
Injection type
Bore x Stroke
Displacement
Maximum power
Maximum torque
Fuel IVECO / Turbo Diesel
4 cylinders in line
Direct injection
94,4 x 100 mm
2 800 cc
107 Kw (146hp) (a) 3 600 Rpm
320 Nm (a) 1 500 Rpm
Diesel
PERFORMANCES Maximum speed
Approach angle
Departure angle
Slide slope
Gradient
Fording
Range
130 Km/h
60°
48°
40°
100 %
533 mm
800 Km
GEAR BOX 5 speed gearbox
TRANSFER BOX Brand / Type
Ratio AUVERLAND / A.80 R
Non permanent 4 wd
configuration with 2 speed
transfer case
AXLES Type
Differential Rigid
Rear differential lock
SUSPENSION Front and rear Coil springs and hydraulic shock absorbers
Anti roll bar
BRAKES Type Servo assisted / ABS / Anti Skid system
Disk brakes
STEEERING Principe Powered steering / Turning radius : 6,50m
FUEL TANK Capacity 135 l
ELECTRICAL
EQUIPMENT Instruments and black out lights in 24 volts /
Engine electronic in 12 volts (12/24 v converter)
24 volts Alternator and Starter /
Interference suppressor EG 13
TYRES 255 / 100 R 16
CREW 2 to 4 men depending on missions
STANDARD
EQUIPEMENT
Gearbox / Transfer protection
OPTIONS
Automatic gearbox
Electric winch
Slave socket
Central Tyre Inflation System
Reinforced interference suppressor
Armour kit
Weapons provision
Right hand drive version
A Caixa de Transferência é a mesma do JPX
